In the new ON/OFF water pump the flow of coolant is cut off in cold-start situations, so that the engine quickly reaches its operating temperature.
Background
The EURO 6 standard for passenger cars becomes effective in 2015, and it further strengthens the requirements for how much new cars may pollute. As a direct consequence of this there is a great demand on the ingenuity of developers of new car engines . All components and systems in and around the engine are subject to new innovations - including the water pump.
Technology

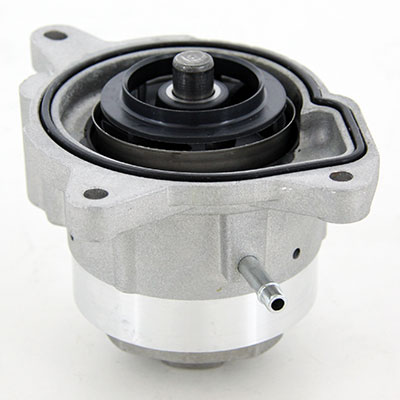

In the new ON/OFF water pump the flow of the cooling fluid in the refrigeration cycle is interrupted by a pneumatically actuated case that encapsulates the impeller in the water pump. The cooling fluid and the pneumatic mechanism controlling the casing are separated by three membranes, as opposed to the conventional water pump seal. The membrane structure is even under difficult operating conditions extremely efficient. The mechanism controlling the casing has a so-called failsafe function - ie. by lack of vacuum, the water pump will work as usual.
The casing in ON-position
The casing in OFF-position
Advantages
Compared to the seal, there is no friction in the membrane system, and thus it is less likely to wear. Another advantage is the reduced risk of damage caused by dirt in the cooling system. The ON / OFF water pump has, in other words, a more reliable and durable construction compared to a conventional water pump.
Fits
The vacuum pump ( Triscan ref no. 8600 29056 ) for the VAG group’s 1.2 TSi , TFSI ( CBZA and CBZB ) engines mounted in AUDI ( A1 Sportback / A3 II Sportback ) , SEAT (Altea / Altea XL / Ibiza V / Leon II ) , SKODA ( Octavia II , SW / Octavia III / Roomster / Yeti ) and Volkswagen ( Golf VI Variant / Golf VI Plus / Jetta IV / Polo VI / Touran / Caddy III).
Alternatively
For example BMW, but also VAG and Ford, has over the past decade and to a greater extent been using the electric water pumps in many of their models. The electric water pump is also one of the innovations within water pumps having emerged as a result of the introduction of the EURO standards .

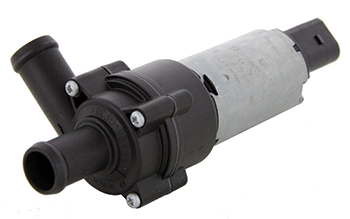

Electric water pump for VAG and Ford
The program contains 660 stocked references – including both vacuum and electric pumps – thus covering more than 95% of the Danish car parc That means that whenever you as a wholesaler or garage ask for a water pump of OE quality, Triscan will in most cases be able to help you!
